HOWTO: Creating an OLE DB Connection String for Microsoft SQL Server

Q1000

Before creating OLE DB Connection String, it is highly recommended to have existed Microsoft SQL database for TMeter.

1. Start the UDL Wizard:
   • Right-click your desktop and select New, and then Text Document.
   • Rename the new text document as My.udl. Press ENTER.
   • You will receive a warning about renaming the file extension. Click yes. Note that the file's icon now looks like a computer with a datasheet in the background.
2. Next, double-click My.udl and use the Wizard as follows:
   • Click the Provider tab.
   • From the Providers menu, select Microsoft OLE DB Provider for SQL Server, and then click Next to proceed to the Connections tab.

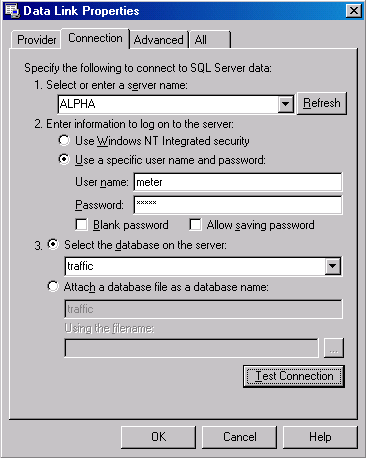

3. On the Connections tab:
   • Type your server name or browse to the server you want to connect to.
   • Enter information to log on to the server
   • Select the database on the server
   • Click "Test Connection" to be sure that you've got no error
   • Click OK, which will close the Wizard.
4. Move My.udl from the desktop to a proper folder, for example C:\Program Files\TMeter
